The vision industries have used normalized correlation to reliably locate patterns with high accuracy. Researchers were able to reduce the computational
complexity of normalized correlation by using data pyramids and thus making it find patterns in real-time, but only in spatially translated images.
Other attempts by vision industry researchers to speed up normalized correlation, such as skipping pixels, deteriorated the performance.
In addition, today’s vision industries need to handle nonlinear changes in brightness, process variations such as multilayer buildup in wafer
production, blurring, and perspective distortion. We have developed a simple multi-level matching algorithm that results independent to shift,
rotation, scale and also noise. Reference image is aligned with the input image with an associated matching score. The proposed algorithm results
extremely robust to global and local intensity variations.
Daniel Eaton's code has been used for a fast normalized cross-correlation.
Index Terms: Matlab, source, code, pattern matching, normalized cross correlation, normxcorr2, pyramid schemes, image registration, image alignment.
 |

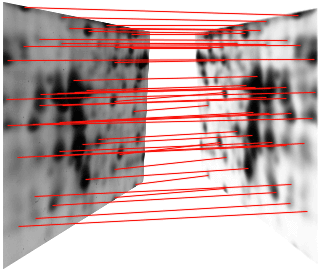

Figure 1. Pattern matching for 2D images |
||||||||||||||
|
A simple and effective source code for bidimensional pattern matching. |
|||||||||||||||
|
|
Demo code (protected
P-files) available for performance evaluation. Matlab Image Processing Toolbox is required. |
||||||||||||||
|
Release |
Date |
Major features |
|||||||||||||
|
1.0 |
2007.06.07 |
|
|||||||||||||
We recommend to check the secure connection to PayPal, in order to avoid any fraud. This donation has to be considered an encouragement to improve the code itself. |
|||||||||||||||
2D Pattern Matching - Click here for
your donation. In order to obtain the source code you
have to pay a little sum of money: 70 EUROS (less
than 98 U.S. Dollars). |
|||||||||||||||
Once you have done this, please email us luigi.rosa@tiscali.it As soon as possible (in a few days) you will receive our new release of 2D Pattern Matching. Alternatively, you can bestow using our banking coordinates:
|
|||||||||||||||
The authors have no relationship or partnership
with The Mathworks. All the code provided is written in Matlab
language (M-files and/or M-functions), with no dll or other
protected parts of code (P-files or executables). The code was
developed with Matlab 14 SP1. Matlab Image Processing Toolbox is required.
The code provided has to be considered "as is" and it is without any kind of warranty. The
authors deny any kind of warranty concerning the code as well
as any kind of responsibility for problems and damages which may
be caused by the use of the code itself including all parts of
the source code.
